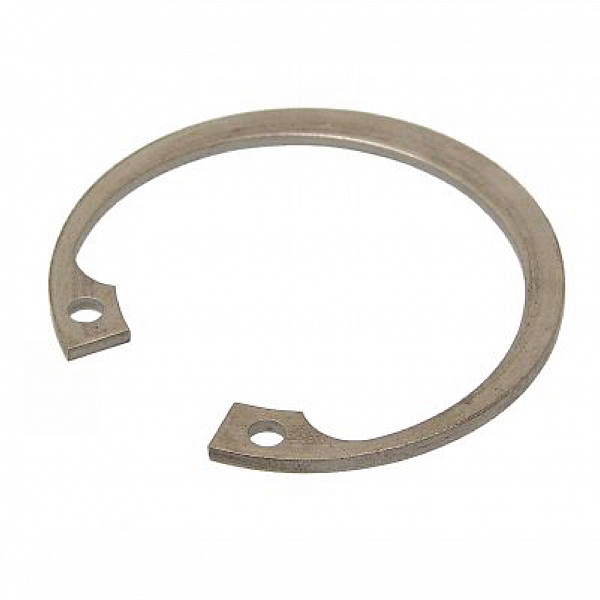

DIN 472 Кольцо стопорное внутреннее для отверстия, пружинное упорное эксцентрическое. Диаметр отверстия от 8 до 300 мм. Материалы:
- Сталь пружинная - Сталь с покрытием: гальваническая оцинковка - Нержавеющая сталь: 1.4034, 1.4122, 1.4310, 1.4568 Таблица размеров внутренних стопорных колец DIN 472 для отверстий (нормальный тип) в мм
|
d1
|
s
|
d3
|
а
|
b
|
d5
|
d2
|
m
|
n
|
d4
|
|
8
|
0.8
|
8.7
|
2.4
|
1.1
|
1
|
8.4
|
0.9
|
0.6
|
3
|
|
9
|
0.8
|
9.8
|
2.5
|
1.3
|
1
|
9.4
|
0.9
|
0.6
|
3.3
|
|
10
|
1
|
10.8
|
3.2
|
1.4
|
1.2
|
10.4
|
1.1
|
0.6
|
3.7
|
|
11
|
1
|
11.8
|
3.3
|
1.5
|
1.2
|
11.4
|
1.1
|
0.6
|
4.1
|
|
12
|
1
|
13
|
3.4
|
1.7
|
1.5
|
12.5
|
1.1
|
0.8
|
4.9
|
|
13
|
1
|
14.1
|
3.6
|
1.8
|
1.5
|
13.6
|
1.1
|
0.9
|
5.4
|
|
14
|
1
|
15.1
|
3.7
|
1.9
|
1.7
|
14.6
|
1.1
|
0.9
|
6.2
|
|
15
|
1
|
16.2
|
3.7
|
2
|
1.7
|
15.7
|
1.1
|
1.1
|
7.2
|
|
16
|
1
|
17.3
|
3.8
|
2
|
1.7
|
16.8
|
1.1
|
1.2
|
8
|
|
17
|
1
|
18.3
|
3.9
|
2.1
|
1.7
|
17.8
|
1.1
|
1.2
|
8.8
|
|
18
|
1
|
19.5
|
4.1
|
2.2
|
2
|
19
|
1.1
|
1.5
|
9.4
|
|
19
|
1
|
20.5
|
4.1
|
2.2
|
2
|
20
|
1.1
|
1.5
|
10.4
|
|
20
|
1
|
21.5
|
4.2
|
2.3
|
2
|
21
|
1.1
|
1.5
|
11.2
|
|
d1
|
s
|
d3
|
а
|
b
|
d5
|
d2
|
m
|
n
|
d4
|
|
21
|
1
|
22.5
|
4.2
|
2.4
|
2
|
22
|
1.1
|
1.5
|
12.2
|
|
22
|
1
|
23.5
|
4.2
|
2.5
|
2
|
23
|
1.1
|
1.5
|
13.2
|
|
24
|
1.2
|
25.9
|
4.4
|
2.6
|
2
|
25.2
|
1.3
|
1.8
|
14.8
|
|
25
|
1.2
|
26.9
|
4.5
|
2.7
|
2
|
26.2
|
1.3
|
1.8
|
15.5
|
|
26
|
1.2
|
27.9
|
4.7
|
2.8
|
2
|
27.2
|
1.3
|
1.8
|
16.1
|
|
28
|
1.2
|
30.1
|
4.8
|
2.9
|
2
|
29.4
|
1.3
|
2.1
|
17.9
|
|
30
|
1.2
|
32.1
|
4.8
|
3
|
2
|
31.4
|
1.3
|
2.1
|
19.9
|
|
31
|
1.2
|
33.4
|
5.2
|
3.2
|
2.5
|
32.7
|
1.3
|
2.6
|
20
|
|
32
|
1.2
|
34.4
|
5.4
|
3.2
|
2.5
|
33.7
|
1.3
|
2.6
|
20.6
|
|
34
|
1.5
|
35.5
|
5.4
|
3.3
|
2.5
|
35.7
|
1.6
|
2.6
|
22.6
|
|
35
|
1.5
|
37.8
|
5.4
|
3.4
|
2.5
|
37
|
1.6
|
3
|
23.6
|
|
36
|
1.5
|
38.8
|
5.4
|
3.5
|
2.5
|
38
|
1.6
|
3
|
24.6
|
|
37
|
1.5
|
39.8
|
5.5
|
3.6
|
2.5
|
39
|
1.6
|
3
|
25.4
|
|
38
|
1.5
|
40.8
|
5.5
|
3.7
|
2.5
|
40
|
1.6
|
3
|
26.4
|
|
40
|
1.75
|
43.5
|
5.8
|
3.9
|
2.5
|
42.5
|
1.85
|
3.8
|
27.8
|
|
42
|
1.75
|
45.5
|
5.9
|
4.1
|
2.5
|
44.5
|
1.85
|
3.8
|
29.6
|
|
45
|
1.75
|
48.5
|
6.2
|
4.3
|
2.5
|
47.5
|
1.85
|
3.8
|
32
|
|
47
|
1.75
|
50.5
|
6.4
|
4.4
|
2.5
|
49.5
|
1.85
|
3.8
|
33.5
|
|
48
|
1.75
|
51.5
|
6.4
|
4.5
|
2.5
|
50.5
|
1.85
|
3.8
|
34.5
|
|
50
|
2
|
54.2
|
6.5
|
4.6
|
2.5
|
53
|
2.15
|
4.5
|
36.3
|
|
d1
|
s
|
d3
|
а
|
b
|
d5
|
d2
|
m
|
n
|
d4
|
|
52
|
2
|
56.2
|
6.7
|
4.7
|
2.5
|
55
|
2.15
|
4.5
|
37.9
|
|
55
|
2
|
59.2
|
6.8
|
5
|
2.5
|
58
|
2.15
|
4.5
|
40.7
|
|
56
|
2
|
60.2
|
6.8
|
5.1
|
2.5
|
59
|
2.15
|
4.5
|
41.7
|
|
58
|
2
|
62.2
|
6.9
|
5.2
|
2.5
|
61
|
2.15
|
4.5
|
43.5
|
|
60
|
2
|
64.2
|
7.3
|
5.4
|
2.5
|
63
|
2.15
|
4.5
|
44.7
|
|
62
|
2
|
66.2
|
7.3
|
5.5
|
2.5
|
59
|
2.15
|
4.5
|
46.7
|
|
63
|
2
|
67.2
|
7.3
|
5.6
|
2.5
|
66
|
2.15
|
4.5
|
47.7
|
|
65
|
2.5
|
69.2
|
7.6
|
5.8
|
3
|
68
|
2.65
|
4.5
|
49
|
|
68
|
2.5
|
72.5
|
7.8
|
6.1
|
3
|
71
|
2.65
|
4.5
|
51.6
|
|
70
|
2.5
|
74.5
|
7.8
|
6.2
|
3
|
73
|
2.65
|
4.5
|
53.6
|
|
72
|
2.5
|
76.5
|
7.8
|
6.4
|
3
|
75
|
2.65
|
4.5
|
55.6
|
|
75
|
2.5
|
79.5
|
7.8
|
6.6
|
3
|
78
|
2.65
|
4.5
|
58.6
|
|
78
|
2.5
|
82.5
|
8.5
|
6.8
|
3
|
81
|
2.65
|
4.5
|
60.1
|
|
80
|
2.5
|
82.5
|
8.5
|
7
|
3
|
83.5
|
2.65
|
5.3
|
62.1
|
|
82
|
2.5
|
87.5
|
8.5
|
7
|
3
|
85.5
|
2.65
|
5.3
|
64.1
|
|
85
|
3
|
90.5
|
8.6
|
7.2
|
3.5
|
88.5
|
3.15
|
5.3
|
66.9
|
|
88
|
3
|
93.5
|
8.6
|
7.4
|
3.5
|
91.5
|
3.15
|
5.3
|
69.9
|
|
90
|
3
|
95.5
|
8.6
|
7.6
|
3.5
|
93.5
|
3.15
|
5.3
|
71.9
|
|
92
|
3
|
97.5
|
8.7
|
7.8
|
3.5
|
95.5
|
3.15
|
5.3
|
73.7
|
|
95
|
3
|
100.5
|
8.8
|
8.1
|
3.5
|
98.5
|
3.15
|
5.3
|
76.5
|
|
98
|
3
|
103.5
|
9
|
8.3
|
3.5
|
101.5
|
3.15
|
5.3
|
79
|
|
100
|
3
|
105.5
|
9.2
|
8.4
|
3.5
|
103.5
|
3.15
|
5.3
|
80.6
|
|
d1
|
s
|
d3
|
а
|
b
|
d5
|
d2
|
m
|
n
|
d4
|
|
102
|
4
|
108
|
9.5
|
8.5
|
3.5
|
106
|
4.15
|
6
|
82
|
|
105
|
4
|
112
|
9.5
|
8.7
|
3.5
|
109
|
4.15
|
6
|
85
|
|
108
|
4
|
115
|
9.5
|
8.9
|
3.5
|
112
|
4.15
|
6
|
88
|
|
110
|
4
|
117
|
10.4
|
9
|
3.5
|
114
|
4.15
|
6
|
88.2
|
|
112
|
4
|
119
|
10.5
|
9.1
|
3.5
|
116
|
4.15
|
6
|
90
|
|
115
|
4
|
122
|
10.5
|
9.3
|
3.5
|
119
|
4.15
|
6
|
93
|
|
120
|
4
|
127
|
11
|
9.7
|
3.5
|
124
|
4.15
|
6
|
96.9
|
|
125
|
4
|
132
|
11
|
10
|
4
|
129
|
4.15
|
6
|
101.9
|
|
130
|
4
|
137
|
11
|
10.2
|
4
|
134
|
4.15
|
6
|
106.9
|
|
135
|
4
|
142
|
11.2
|
10.5
|
4
|
139
|
4.15
|
6
|
111.5
|
|
140
|
4
|
147
|
11.2
|
10.7
|
4
|
144
|
4.15
|
6
|
116.5
|
|
145
|
4
|
152
|
11.4
|
10.9
|
4
|
149
|
4.15
|
6
|
121
|
|
150
|
4
|
158
|
12
|
11.2
|
4
|
155
|
4.15
|
7.5
|
124.8
|
|
155
|
4
|
164
|
12
|
11.4
|
4
|
160
|
4.15
|
7.5
|
129.8
|
|
160
|
4
|
169
|
13
|
11.6
|
4
|
165
|
4.15
|
7.5
|
132.7
|
|
165
|
4
|
174.5
|
13
|
11.8
|
4
|
170
|
4.15
|
7.5
|
137.7
|
|
170
|
4
|
179.5
|
13.5
|
12.2
|
4
|
175
|
4.15
|
7.5
|
141.6
|
|
175
|
4
|
184.5
|
13.5
|
12.7
|
4
|
180
|
4.15
|
7.5
|
146.6
|
|
180
|
4
|
189.5
|
14.2
|
13.2
|
4
|
185
|
4.15
|
7.5
|
150.2
|
|
185
|
4
|
194.5
|
14.2
|
13.7
|
4
|
190
|
4.15
|
7.5
|
155.2
|
|
d1
|
s
|
d3
|
а
|
b
|
d5
|
d2
|
m
|
n
|
d4
|
|
190
|
4
|
199.5
|
14.2
|
13.8
|
4
|
195
|
4.15
|
7.5
|
160.2
|
|
195
|
4
|
204.5
|
14.2
|
13.8
|
4
|
200
|
4.15
|
7.5
|
165.2
|
|
200
|
4
|
209.5
|
14.2
|
14
|
4
|
205
|
4.15
|
7.5
|
170.2
|
|
210
|
5
|
222
|
14.2
|
14
|
4
|
216
|
5.15
|
9
|
180.2
|
|
220
|
5
|
232
|
14.2
|
14
|
4
|
226
|
5.15
|
9
|
190.2
|
|
230
|
5
|
242
|
14.2
|
14
|
4
|
236
|
5.15
|
9
|
200.2
|
|
240
|
5
|
252
|
14.2
|
14
|
4
|
246
|
5.15
|
9
|
210.2
|
|
250
|
5
|
262
|
14.2
|
14
|
4
|
256
|
5.15
|
9
|
220.2
|
|
260
|
5
|
275
|
16.2
|
16
|
5
|
268
|
5.15
|
12
|
226
|
|
270
|
5
|
285
|
16.2
|
16
|
5
|
278
|
5.15
|
12
|
236
|
|
280
|
5
|
295
|
16.2
|
16
|
5
|
288
|
5.15
|
12
|
246
|
|
290
|
5
|
305
|
16.2
|
16
|
5
|
298
|
5.15
|
12
|
256
|
|
300
|
5
|
315
|
16.2
|
16
|
5
|
308
|
5.15
|
12
|
266
|
|
d1
|
s
|
d3
|
а
|
b
|
d5
|
d2
|
m
|
n
|
d4
|
Обозначения:
d1 - диаметр отверстия
s - толщина кольца
d3 - наружный диаметр кольца
а - ширина ушка
b - макс. ширина кольца
d5 - диаметр отверстия
m - ширина канавки
n - высота кромки
d4 - диаметр окружности
